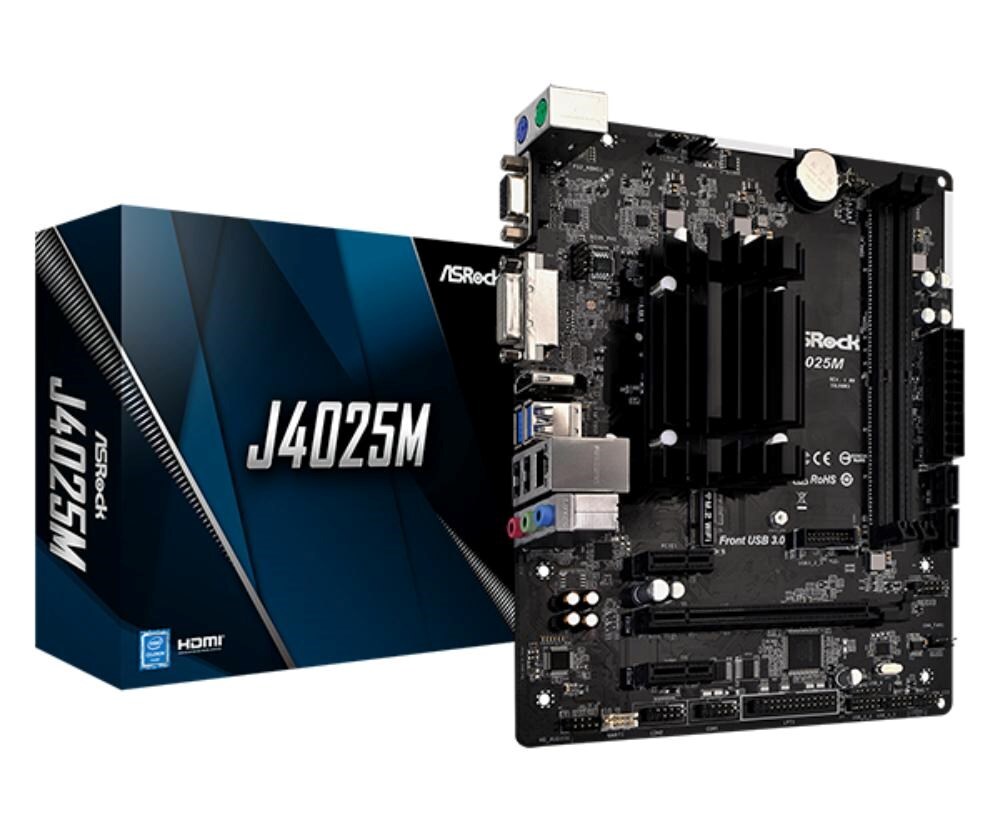

ASRock J4025M

• ASRock Super Alloy


• Intel Dual-Core Processor J4025 (Up to 2.9 GHz)


• Supports DDR4 2133/2400 Long DIMM


• 1 PCIe 2.0 x16 (x1 mode), 2 PCIe 2.0 x1


• 1 M.2 Key E for WiFi (Intel CNVi Only)


• Graphics Output Options: D-Sub, HDMI, DVD-D


• Supports 4K x 2K @60Hz


• 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps


• 2 SATA3


• 4 USB 3.2 Gen1 (2 Front, 2 Rear)


• Supports Full Spike Protection, ASRock Live Update & APP Shop

Unique Feature

ASRock Super Alloy- Sapphire Black PCB- High Density Glass Fabric PCBASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop

CPU

- Intel Dual-Core Processor J4025 (up to 2.9 GHz)

Memory

- Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots*- Supports DDR4 2400 / 2133 non-ECC, un-buffered memory- Max. capacity of system memory: 8GB*2GB DRAM per module is not supported.Intel Extreme Memory Profile (XMP) is not supported

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support- Supports Plug and Play- ACPI 5.0 compliant wake up events- Supports jumperfree- SMBIOS 3.0 support

Graphics

- Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 700MHz)- DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2- HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit- HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit- Three graphics output options: D-Sub, DVI-D and HDMI- Supports Triple Monitor- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)- Supports HDCP 2.2 with DVI-D and HDMI 2.0 Ports- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 2.0 Ports

Audio

- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)- Supports Surge Protection- ELNA Audio Caps*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111E- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE

Slots

- 1 x PCI Express 2.0 x16 Slot (PCIE2: x1 mode)- 2 x PCI Express 2.0 x1 Slots- 1 x M.2 Socket (Key E), supports type 2230 Intel CNVi (Integrated WiFi/BT)*M.2 PCI Express module is not supported

Storage

- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector

- 1 x Print Port Header- 2 x COM Port Headers- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (3-pin)- 1 x Chassis Fan Connector (3-pin)- 1 x 24 pin ATX Power Connector- 1 x Front Panel Audio Connector- 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Rear Panel I/O

- 1 x PS/2 Mouse Port- 1 x PS/2 Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 2 x USB 2.0 Ports (Supports ESD Protection)- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

SoftwareUEFI- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories

- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 1 x Screw for M.2 Socket

Hardware Monitor

- CPU/Chassis temperature sensing- CPU/Chassis Fan Tachometer- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)- CPU/Chassis Fan multi-speed control- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm- Solid Capacitor design

OS

- Microsoft Windows 10 64-bit / 11 64-bit

Certifications

- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
