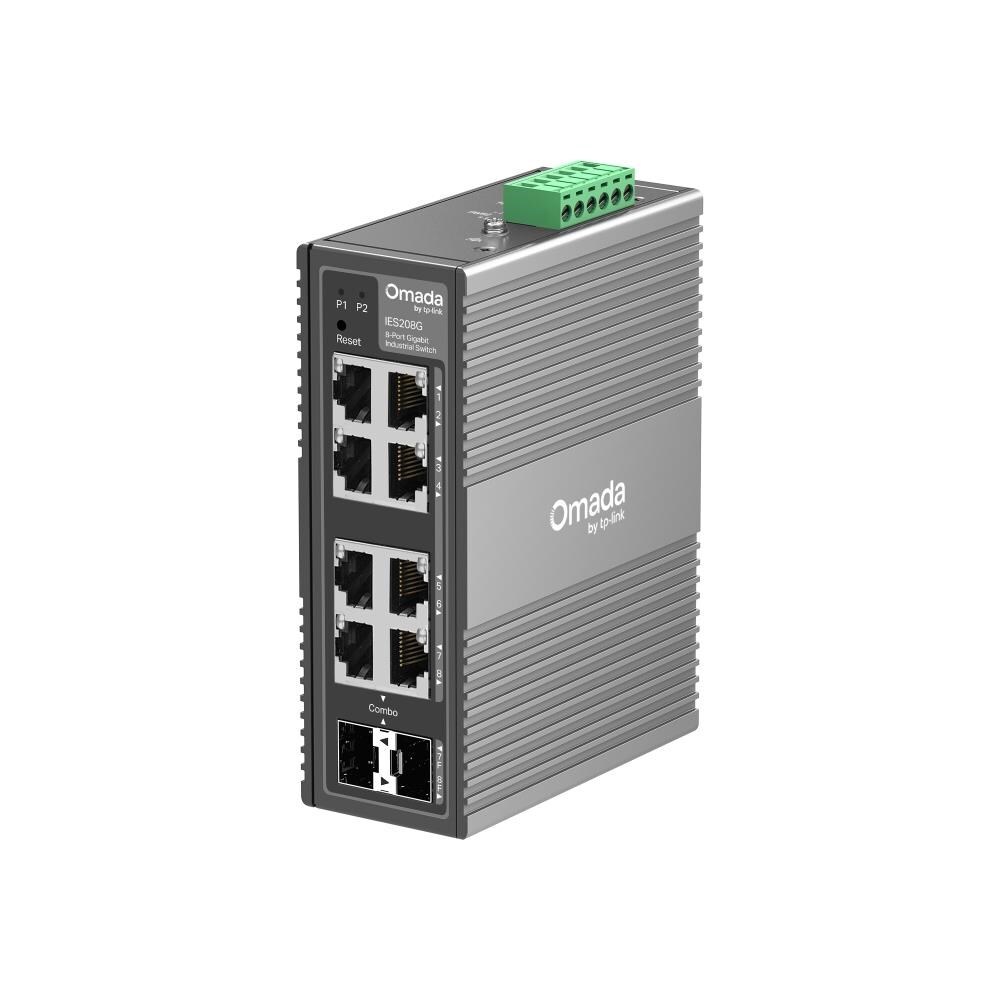

TP-Link OMADA průmyslový switch IES208G

Omada 8portový gigabitový průmyslový Easy Managed switch

• 8× gigabitových portů (6× RJ45, 2× RJ45/SFP Combo)


• Profesionální průmyslové provedení: -40°C~75°C provozní teplota, 6 kV přepěťová ochrana a 1+1 redundantní napájecí vstup


• Bohatá výbava: VLAN, QoS a STP/RSTP


• Centralizovaná cloudová správa přes web nebo aplikaci Omada†


• Odolný hliníkový kryt s krytím IP40 a konstrukce pro montáž na DIN lištu / na stěnu

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-industrial/ies208g

Technické specifikace

HARDWARE FEATURES
Interface • 6× 10/100/1000 Mbps RJ45 Ports

• 2× Gigabit SFP/RJ45 Combo Slots
• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity Fanless
Installation • DIN-rail mounting

• Wall mounting

Power Supply 9.6-60V 1+1 Redundant DC Power Input
Dimensions ( W x D x H ) 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection • ±6 kV in common mode for Ethernet ports

• ±4 kV in common mode for DC power input ports

PERFORMANCE
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • 802.1p DSCP Priority

• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rate Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control

L2 Features • Link Aggregation

- Static Link Aggregation
- Up to 2 aggregation groups and up to 4 ports per group
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
• Spanning Tree
- STP (802.1d)
- RSTP (802.1w)

L2 Multicast • IGMP Snooping

- IGMP v1/v2/v3 Snooping
- Fast Leave

VLAN • MTU VLAN

• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID

Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller
• Omada Software Controller

Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI

• DHCP Client
• Cable Diagnostics
• Digital Diagnostic Monitoring (DDM)
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†

OTHERS
Certification FCC, CE, RoHS
Package Content • IES208G

• DIN-Rail Mounting Bracket
• Wall-Mounting Plates
• Installation Guide

Environment • Operating Temperature: -40?~75? (-40?~167?)

• Storage Temperature: -40?~85? (-40?~185?)
• Operating Humidity: 5%~95% non-condensing
• Storage Humidity: 5%~95% non-condensing ukryj opis
