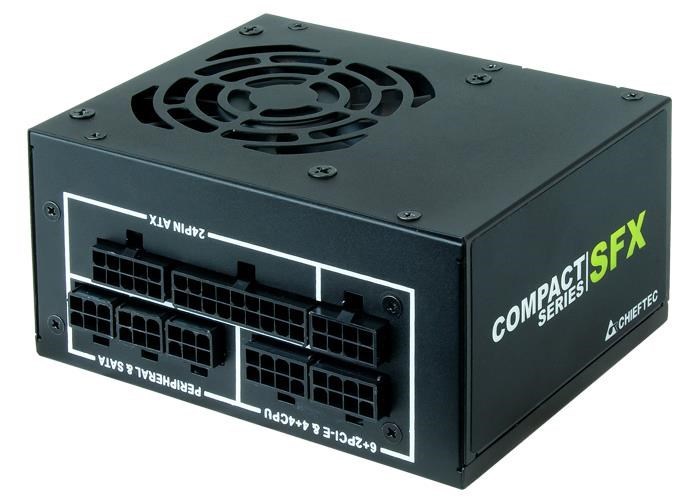

This small SFX PSU surprises with massive power and an incredible power output of 550 watts. You won’t have unnecessary cables anymore as it comes with a cable managment and 80plus gold certification. The 80mm Ultra Silent fan is perfect to cool down the power supply.
SPECIFICATIONS:
Performance
AC Input: |
100V-240V / 6A |
Frequency: |
47-63 Hz |
+5V: |
15A |
+3,3V: |
18A |
+5V & +3,3V combined: |
90W |
+12V 1: |
45,8A |
+12V 2: |
N/A |
+12V 1 & +12V 2 combined: |
N/A |
+12V 3: |
N/A |
+12V 4: |
N/A |
+12V 3 & +12V 4 combined: |
N/A |
P.F.: |
>0,9 |
-12V: |
0,3A |
+5VSB: |
3,0A |
Maximum Load: |
550W |
Modular cable
20+4PIN ATX: |
1 |
SATA: |
4 |
MOLEX: |
3 |
Floppy: |
1 |
4PIN 12V: |
- |
8PIN 12V: |
- |
8PIN (4+4) 12V: |
1 |
6PIN PCIe: |
- |
8PIN (6+2) PCIe: |
2 |
Features
Spezification: |
ATX 12V 2.3 |
Form factor: |
SFX |
Efficiency: |
> 90% |
Dimension (DxWxH): |
100 mm x 125 mm x 64 mm |
PFC: |
Active PFC (0,9) |
Fan: |
80mm silent fan |
Security: |
- UVP (Undervoltage protection)
- OVP (Overvoltage protection)
- SCP (Short-circuit protection)
- OPP (Overload protection)
- OCP (Over Current Protection)
- OTP (Over Temperature Protection)
- AFC (Automatic Fanspeed Control)
- SIP (Surge & Inrush Protection)
|
Warranty: |
24 Month |
