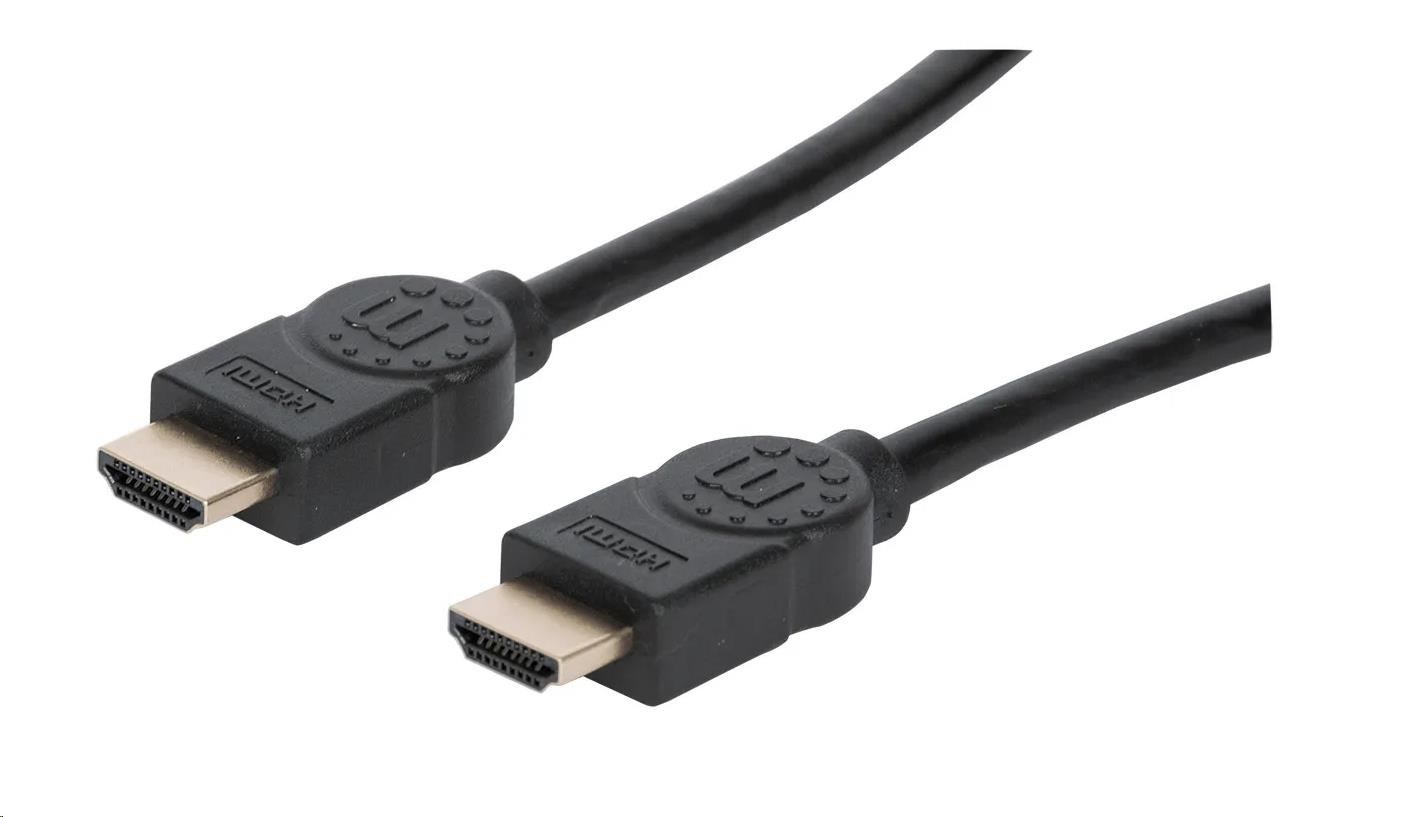

Ultra High Speed HDMI Cable 3M

HEC, Dynamic HDR, VRR, QMS, QFT, ALLM, eARC, 3D, 8K@60Hz, HDMI Male to Male, Shielded, 3 m (10 ft.), Black

• Tangle-resistant design allows for easier handling and management; resists cuts and nicks


• Supports 4K HDR (Dolby Vision and HDR 10), 8K@60Hz and 4K@120Hz displays


• Supports HDMI Ethernet Channel (HEC), Enhanced Audio Return Channel (eARC), enhanced refresh rate and Auto Low Latency Mode (ALLM)

Enjoy the ultimate audiovisual experience.
The Ultra High Speed HDMI standard offers state-of-the-art quality for digital media, delivering the highest-quality audio and video signals over a single cable. Carefully constructed to meet the evolving needs of the high-definition marketplace, the shielded Manhattan Ultra High Speed HDMI Cable provides the highest resolution on the market today (8K@60Hz and 4K@120Hz), easily handling the heavy data requirements of the standard with a bandwidth of 48 Gigabits per second. Its advanced High Dynamic Range (HDR) technology provides unique brightness, contrast, color, increased performance characteristics and greater accuracy.

Features:

• Tangle-resistant design allows for easier handling and management; resists cuts and nicks


• Supports 4K HDR (Dolby Vision and HDR 10), 8K@60Hz and 4K@120Hz displays


• Supports HDMI Ethernet Channel (HEC), Enhanced Audio Return Channel (eARC), enhanced refresh rate and Auto Low Latency Mode (ALLM)


• Enhanced refresh rate features Variable Refresh Rate (VRR), Quick Media Switching (QMS) Quick Frame Transport (QFT)


• eARC supports the most advanced audio formats and highest audio quality (full compatibility only with upcoming HDMI 2.1 products)


• Supports high-speed Ethernet, bi-directional networking up to 100 Mbps


• Provides bandwidth up to 48 Gbps


• Compliant with Ultra High Speed HDMI specifications


• Double shielded to reduce EMI and other interference sources


• Compatible with any HDMI device


• Lifetime warranty

Specifications:

Standards and Certifications:
ISO 9001
CE
RoHS

General:
Bandwidth: 48 Gbps
HEC support
Dynamic HDR
Enhanced Audio Return Channel (eARC)
Variable Refresh Rate (VRR)
Quick Media Switching (QMS)
Quick Frame Transport (QFT)
Auto Low Latency Mode (ALLM)
Meets or exceeds existing HDMI standards
Length: 3 m (10 ft.)

Connectors:
Two HDMI 19-pin male
Gold-plated contacts
Molded PVC boot
Built-in strain relief

Cable:
26 AWG cable
Double shielded
Current rating: 0.5 A DC
Withstanding voltage: 300 V DC
Insulation resistance: 5 MOhms
Conductive resistance: 5 Ohms
Thermal plastic casing

Operating Environment:
Operation Temperature: 0 – 40°C (32 – 104°F)
Storage Temperature: -10 – 60°C (14 – 140°F)
Humidity (noncondensing): 0 – 96%

Package Contents:
Ultra High Speed HDMI Cable
