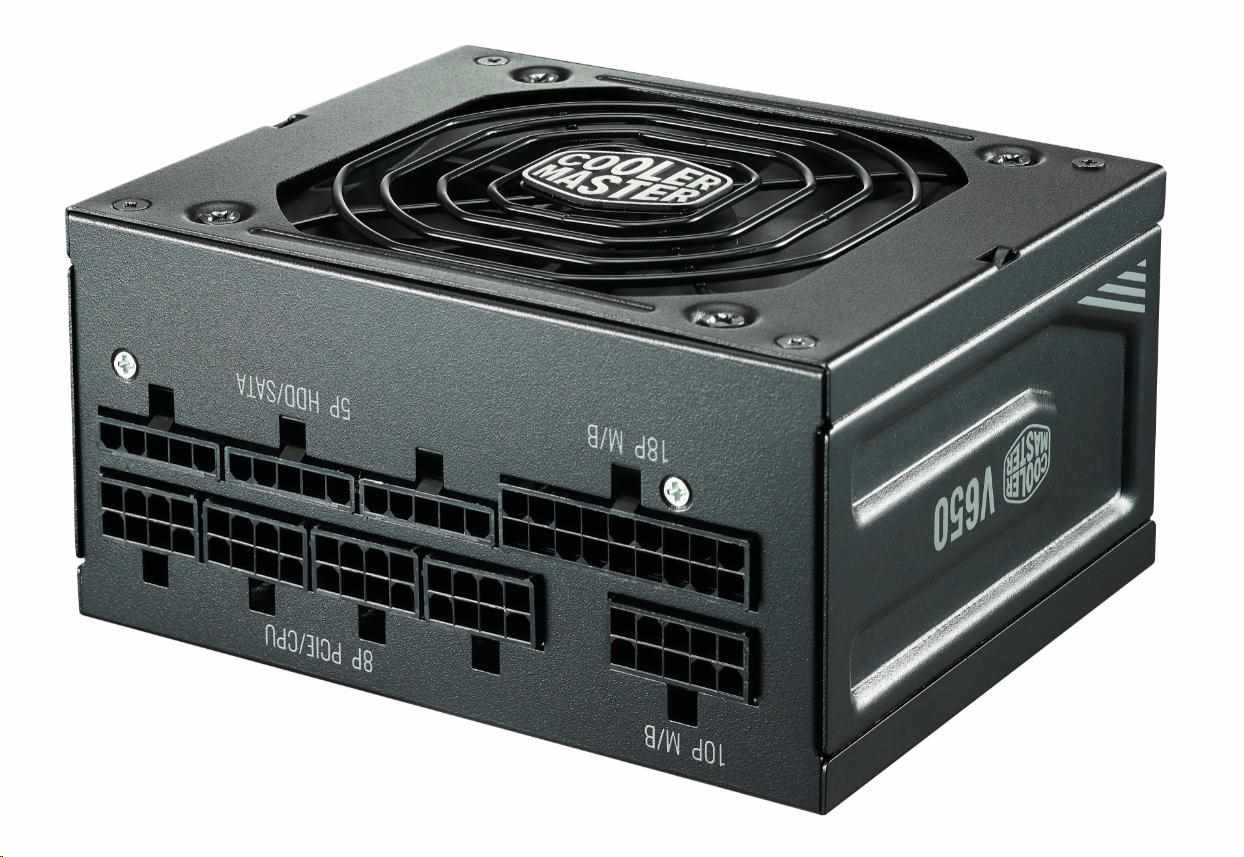

V650 SFX GOLD
FULL-MODULAR 80 PLUS GOLD SFX POWER SUPPLY
- 80 Plus Gold Efficiency
- SFX Form Factor
- SFX-to-ATX Bracket
- 80 Plus Gold Certified
- Full-modular Cabling
- 10 Year Warranty
TECHNICAL SPECIFICATIONS
ATX Version |
SFX 12V Ver.3.42 |
PFC |
Active PFC |
Input Voltage |
90-264 V |
Input Current |
8-4A |
Input frequency |
47-63 Hz |
Dimensions (L x W x H) |
100 x 125 x 63.5 mm |
Fan Size |
92 mm |
Fan Bearing |
FDB |
Efficiency |
90% Typical Load |
80 Plus Rating |
80 PLUS Gold |
ERP 2014 Lot 3 |
Yes |
Operating Temperature |
0-50°C |
Power Good Signal |
100-500 ms |
Hold Up Time |
16ms |
MTBF |
>100,000 Hours |
Protections |
OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection |
Regulatory |
TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
ATX 24-pin Connectors |
1 |
EPS 4+4 pin Connectors |
1 |
EPS 8-pin Connector |
1 |
SATA Connectors |
8 |
Peripheral 4-pin Connectors |
4 |
PCI-E 6+2 pin Connectors |
4 |
Series |
V Gold Series, V SFX Gold Series |
80 PLUS |
Gold |
Modular |
Full Modular |
Wattage |
500 to 750 W |
