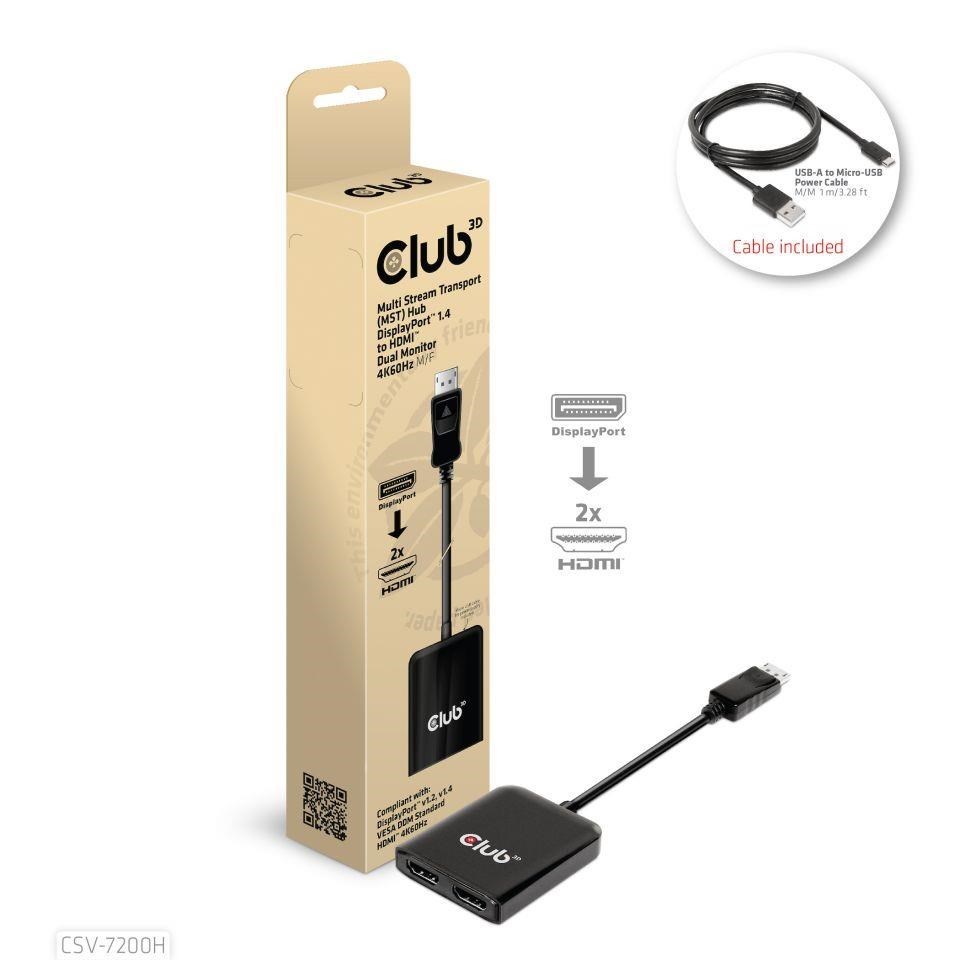

Multi Stream Transport (MST) Hub DisplayPort 1.4 to HDMI Dual Monitor 4K60Hz M/F

The Club 3D CSV-7200H Multi Stream Transport(MST)Hub DisplayPort™ 1.4 to Dual HDMI 4K60Hz is an integrated solution that allow you to enjoy displaying content onto two different displays simultaneously under MST mode. The Two screens can accommodate displaying same contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user’s visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. It’s the perfect solution for host devices which feature DP1.2 /1.4 graphic cards for gaming and commercial applications.

• Compliant with: DisplayPort™ v1.4, DisplayPort™ v1.2, VESA DDM Standard, HDMI™ 4K60Hz
  * Supports HDCP 1.4 and HDCP 2.2 Content protection


• Supports main link rates of 8.1Gbps (HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and (1.62Gbps RBR) from source


• Supports up to Two HDMI™ 4K60Hz ports


• Supported output resolutions :




  • up to 3840*2160p @ 60Hz single or dual displays (Note when the source is DP1.4 and supports DSC1.2)


  • 1x 3840*2160P/30HZ + 1x 1920*1080P/60HZ(DP1.2)
    * Supports transmission of audio and video signals







• Works with AMD, Nvidia™ and Intel™ HD Graphics solutions
  Plug and Play - no driver needed


• Functionality may vary per GPU and OS
  * USB Bus Powered

TECHNICAL SPECIFICATIONS
