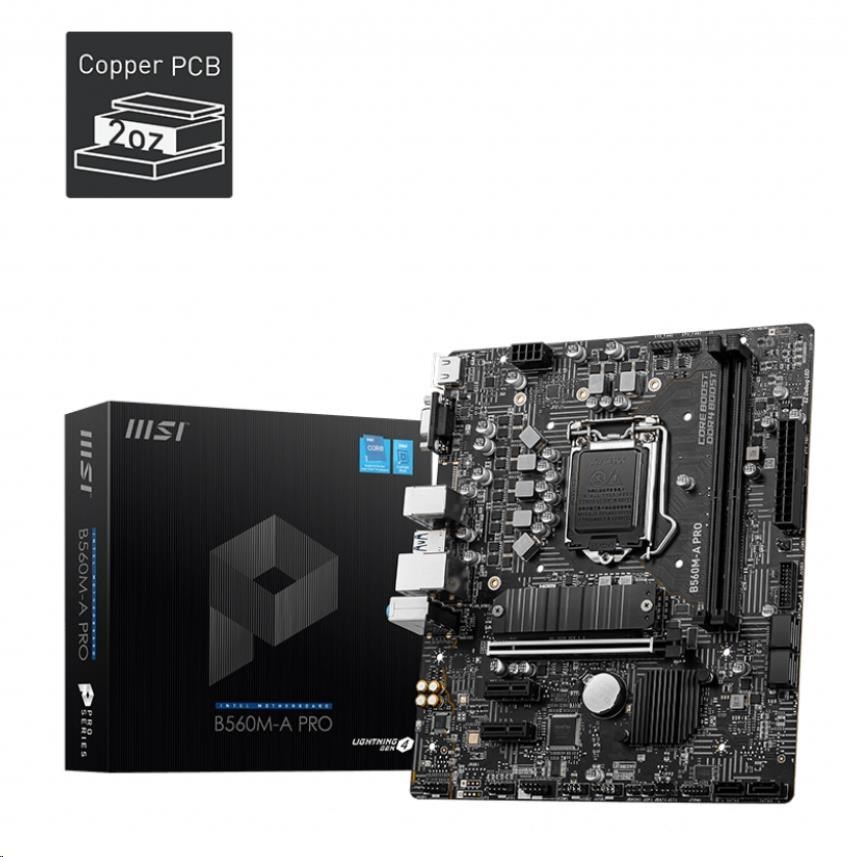

B560M-A PRO

• Supports 10th Gen Intel Core™, 11th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1200 socket


• Supports DDR4 Memory, up to 5200(OC) MHz


• Core Boost : With premium layout and digital power design to support more cores and provide better performance.


• DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability.


• Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr


• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection


• Audio Boost : Reward your ears with studio grade sound quality


• Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.

CPU

Supports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors*
Processor socket LGA1200
*Please go to intel.com for compatibility information

CHIPSET

Intel B560 chipset

MEMORY

2x DDR4 memory slots, support up to 64GB*
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5200 MHz
1DPC 2R Max speed up to 4700+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
*Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From B560 chpiset)

ONBOARD GRAPHICS

1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz*/
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz*/
*Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

AUDIO

Realtek ALC897 Codec
7.1-Channel High Definition Audio

LAN

1x Realtek 8125B 2.5Gbps LAN controller

STORAGE

6x SATA 6Gb/s ports (From B560 chipset)
1x M.2 slot (Key M)*
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)*
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core™ processors
*Intel Optane™ Memory Ready. Before using Intel Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel B560 Chipset
6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector)

FORM FACTOR

mATX Form Factor
9.3 in. x 8.0 in. (23.6 cm x 20.2 cm)

BIOS FEATURES

1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.2, SMBIOS 3.0
Multi-language

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x M.2 slot (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning Controller Connector

BACK PANEL CONNECTORS

HDMI
VGA
Mouse / Keyboard
LAN port
Audio connector
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
