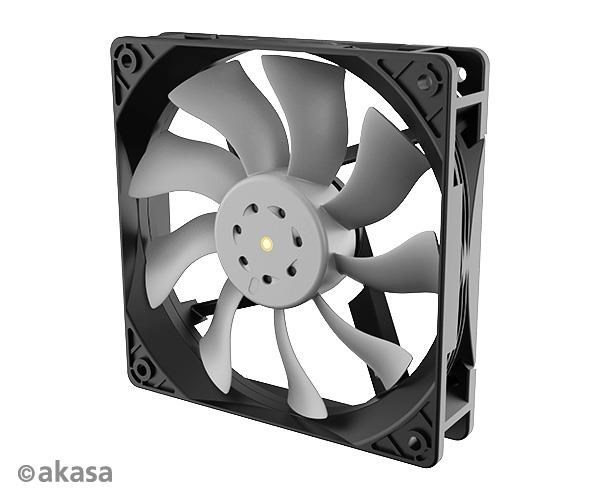

OTTO SF12
Elite Airflow Optimised Cooling Fan
- Advanced auto industry structure design
- IP68 rated rotor technology
- Advanced blade technology
- Intelligent PWM speed control
- Easy to clean
- Rubber mounting pins
TECHNICAL SPECIFICATIONS
Application |
Case, Industrial application |
Dimension |
120 x 120 x 25 mm |
Fan speed |
0-2000 RPM |
Max airflow |
97.02 CFM |
Fan air pressure |
3.59 mm H2O |
Noise level |
7.1-31.7 dB(A) |
Voltage rating |
12V DC |
Rated Current |
0.16A |
Bearing |
Two Ball Bearing |
Connector |
4pin PWM |
Colour |
Grey |
Contents |
OTTO SF12 Fan, 4 x Rubber Pin |
Fan Life Expectancy |
80,000 hours |
Warranty |
2 years |
