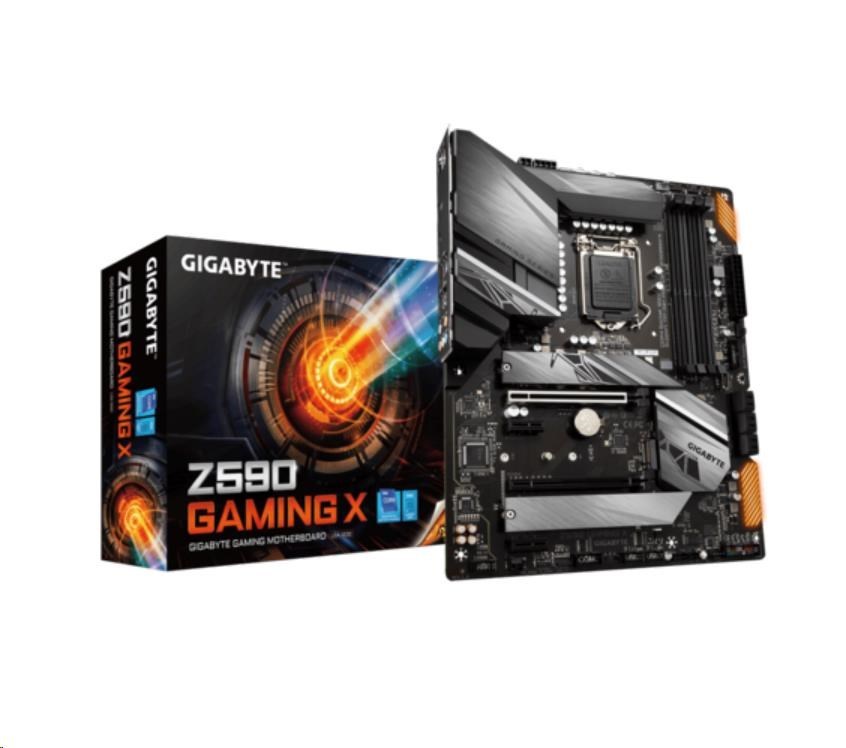

GIGABYTE MB Sc LGA1200 Z590 GAMING X, Intel Z590, 4xDDR4, 1xDP -

Z590 GAMING XIntel Z590 GAMING Motherboard with Direct 12+1 Phases Digital VRM with DrMOS, Full PCIe 4.0* Design, Fully Covered Thermal Design with Integrated IO Armor, PCIe 4.0 M.2 with Thermal Guard, 2.5GbE Gaming LAN, USB 3.2 Gen2 TYPE-C , RGB FUSION 2.0, Q-Flash PlusSupports 11th and 10th Gen... przeczytaj całość

Z590 GAMING X

Intel Z590 GAMING Motherboard with Direct 12+1 Phases Digital VRM with DrMOS, Full PCIe 4.0* Design, Fully Covered Thermal Design with Integrated IO Armor, PCIe 4.0 M.2 with Thermal Guard, 2.5GbE Gaming LAN, USB 3.2 Gen2 TYPE-C , RGB FUSION 2.0, Q-Flash Plus

Supports 11th and 10th Gen Intel Core™ Series Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Direct 12+1 Phases Digital VRM Solution with 60A DrMOS

Shielded Memory Routing for Better Memory Overclocking

Fully Covered Thermal Design with High Coverage MOSFET Heatsinks

Fast 2.5GbE LAN with Bandwidth Management

Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards

Rear USB 3.2 Gen2 Type-C and Front USB3.2 Gen1 Type-C for Connecting Devices

Pre-installed IO Shield for Easy and Quick Installation

RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

TECHNICAL SPECIFICATIONS

CPU	LGA1200 package: 11th Generation Intel Core™ i9 processors / Intel Core™ i7 processors / Intel Core™ i5 processors 10th Generation Intel Core™ i9 processors / Intel Core™ i7 processors / Intel Core™ i5 processors / Intel Core™ i3 processors/ Intel Pentium processors / Intel Celeron processors* * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset	Intel Z590 Express Chipset
Memory	11th Generation Intel Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core™ i5/i3 /Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz. Support for DisplayPort 1.2 version and HDCP 2.3 (Supported graphics specifications may vary depending on CPU or graphics card used.)
Audio	Realtek Audio codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard)
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)Supported by 11th Generation processors only. Chipset: 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane™ Memory Ready
LAN	Realtek 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit)
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen2 support 1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header 1 x USB 3.2 Gen2 Type-A port (red) on the back panel 7 x USB 3.2 Gen1 ports (5 ports on the back panel, 2 ports available through the internal USB header) Chipset+ 2 USB 2.0 Hub: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control Whether the fan speed control function is supported will depend on the cooler you install.
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) Realtek 8125 Gaming LAN Bandwidth Control Utility
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x USB Type-C header, with USB 3.2 Gen2 support 1 x DisplayPort 1 x USB 3.2 Gen 2 Type-A port (red) 5 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt™ add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5 x 24.4 cm
