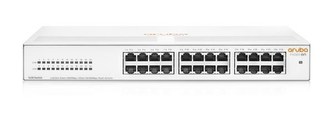

Aruba Instant On 1430 24G Switch -

Aruba Instant On 1430 24G SwitchSafetyEN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013EN/IEC 62368-1, 2nd. & 3rd. Ed.UL 62368-1, 3rd. Ed.CAN/CSA C22.2 No. 62368-1, 3rd. Ed.EN/IEC 60825- 1:2014 Class 1EmissionsEN 55032:2015/ CISPR 32, Class AFCC CFR 47 Part 15: 2018, Class AICES-003,... przeczytaj całość

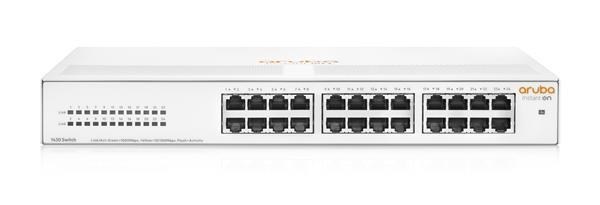

Aruba Instant On 1430 24G Switch

Safety		EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1
Emissions		EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A
Immunity		BS/EN 55035, CISPR 35, KS C 9835
Generic		EN 55035, CISPR 35
EN		EN/IEC 61000-4-2
ESD		EN/IEC 61000-4-3
Radiated		EN/IEC 61000-4-4
EFT/Burst		EN/IEC 61000-4-5
Surge		EN/IEC 61000-4-6
Conducted		EN/IEC 61000-4-8
Power frequency magnetic field		EN/IEC 61000-4-11
Voltage dips and interruptions		EN/IEC 61000-3-2
Harmonics		EN /IEC 61000-3-3
Device Management		Unmanaged
Mounting
Mounting positions and supported racking		Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting using the brackets provided Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
Transceivers

Aruba Instant On 1430 24G Switch (R8R49A)
I/O ports and slots		24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Physical Characteristics
Dimensions		225(d) x 340(w) x 44(h) mm
Weight		4.20 lb (1.91 kg)
Processor and Memory		128Kb EEPROM; Packet buffer size: 2.0 Mb
Performance
100 Mb latency		< 2.7 Î1Sec
1000 Mb latency		< 1.80 Î1Sec
Throughput (Mpps)		35.71 Mpps
Capacity		48 Gbps
MAC address table size		8192 entries
Reliability MTBF (years)		199.5
Environment
Operating temperature		32°F to 104°F (0°C to 40°C)
Operating relative humidity		15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature		-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity		15% to 90% @ 149°F (65°C) non-condensing
Altitude		up to 10,000 ft (3 km)
Acoustics		Fanless
Electrical Characteristics
Frequency		50Hz/60Hz
AC voltage		100-127VAC / 200- 240VAC
Current		0.3A / 0.2A
Maximum power rating		11.7W
Idle power		3.2W
PoE power		-
Power Supply		Internal Power Supply
Safety		EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1
Emissions		EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A
Immunity		BS/EN 55035, CISPR 35, KS C 9835
Generic		EN 55035, CISPR 35
EN		EN/IEC 61000-4-2
ESD		EN/IEC 61000-4-3
Radiated		EN/IEC 61000-4-4
EFT/Burst		EN/IEC 61000-4-5
Surge		EN/IEC 61000-4-6
Conducted		EN/IEC 61000-4-8
Power frequency magnetic field		EN/IEC 61000-4-11
Voltage dips and interruptions		EN/IEC 61000-3-2
Harmonics		EN /IEC 61000-3-3
Device Management		Unmanaged
Mounting
Mounting positions and supported racking		Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting using the brackets provided Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down

Safety		EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1
Emissions		EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A
Immunity		BS/EN 55035, CISPR 35, KS C 9835
Generic		EN 55035, CISPR 35
EN		EN/IEC 61000-4-2
ESD		EN/IEC 61000-4-3
Radiated		EN/IEC 61000-4-4
EFT/Burst		EN/IEC 61000-4-5
Surge		EN/IEC 61000-4-6
Conducted		EN/IEC 61000-4-8
Power frequency magnetic field		EN/IEC 61000-4-11
Voltage dips and interruptions		EN/IEC 61000-3-2
Harmonics		EN /IEC 61000-3-3
Device Management		Unmanaged
Mounting
Mounting positions and supported racking		Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting using the brackets provided Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
Transceivers

Aruba Instant On 1430 24G Switch (R8R49A)
I/O ports and slots		24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Physical Characteristics
Dimensions		225(d) x 340(w) x 44(h) mm
Weight		4.20 lb (1.91 kg)
Processor and Memory		128Kb EEPROM; Packet buffer size: 2.0 Mb
Performance
100 Mb latency		< 2.7 µSec
1000 Mb latency		< 1.80 µSec
Throughput (Mpps)		35.71 Mpps
Capacity		48 Gbps
MAC address table size		8192 entries
Reliability MTBF (years)		199.5
Environment
Operating temperature		32°F to 104°F (0°C to 40°C)
Operating relative humidity		15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature		-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity		15% to 90% @ 149°F (65°C) non-condensing
Altitude		up to 10,000 ft (3 km)
Acoustics		Fanless
Electrical Characteristics
Frequency		50Hz/60Hz
AC voltage		100-127VAC / 200- 240VAC
Current		0.3A / 0.2A
Maximum power rating		11.7W
Idle power		3.2W
PoE power		-
Power Supply		Internal Power Supply
Safety		EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1
Emissions		EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A
Immunity		BS/EN 55035, CISPR 35, KS C 9835
Generic		EN 55035, CISPR 35
EN		EN/IEC 61000-4-2
ESD		EN/IEC 61000-4-3
Radiated		EN/IEC 61000-4-4
EFT/Burst		EN/IEC 61000-4-5
Surge		EN/IEC 61000-4-6
Conducted		EN/IEC 61000-4-8
Power frequency magnetic field		EN/IEC 61000-4-11
Voltage dips and interruptions		EN/IEC 61000-3-2
Harmonics		EN /IEC 61000-3-3
Device Management		Unmanaged
Mounting
Mounting positions and supported racking		Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting using the brackets provided Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
Transceivers

Aruba Instant On 1430 26G 2SFP Switch (R8R50A)
I/O ports and slots	26 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports
Physical Characteristics
Dimensions	225(d) x 388(w) x 44(h) mm
Weight	5.00 lb (2.27 kg)
Processor and Memory	32Mb Flash; Packet buffer size: 12.0 Mb
Performance
100 Mb latency	< 5.21 µSec
1000 Mb latency	> 2.90 µSec
Throughput (Mpps)	41.68 Mpps
Capacity	56 Gbps
MAC address table size	16384 entries
Reliability MTBF (years)	171.9
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature	-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity	15% to 90% @ 149°F (65°C) non-condensing
Altitude	up to 10,000 ft (3 km)
Acoustics	Fanless
Electrical Characteristics
Frequency	50Hz/60Hz
AC voltage	100-127VAC / 200- 240VAC
Current	0.4A / 0.3A
Maximum power rating	16.4W
Idle power	8W
PoE power	-
Power Supply	Internal Power Supply
Safety	EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1
Emissions	EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A
Immunity	BS/EN 55035, CISPR 35, KS C 9835
Generic	EN 55035, CISPR 35
EN	EN/IEC 61000-4-2
ESD	EN/IEC 61000-4-3
Radiated	EN/IEC 61000-4-4
EFT/Burst	EN/IEC 61000-4-5
Surge	EN/IEC 61000-4-6
Conducted	EN/IEC 61000-4-8
Power frequency magnetic field	EN/IEC 61000-4-11
Voltage dips and interruptions	EN/IEC 61000-3-2
Harmonics	EN /IEC 61000-3-3
Device Management	Unmanaged
Mounting
Mounting positions and supported racking	Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting using the brackets provided Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
Transceivers	Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)

General Protocols
IEEE 802.3i	10 Mbps Ethernet
IEEE 802.3u	100Base-T Ethernet
IEEE 802.3z	1000 Mbps Ethernet
IEEE 802.3ab	1000Base-T
IEEE 802.3af	PoE1 (PoE models only)
IEEE 802.3at	PoE1 (PoE models only)
IEEE 802.3x	Flow Control
IEEE 802.3az	Energy Efficient Ethernet
RFC 2474	QoS diffserv (DSCP) mapping
