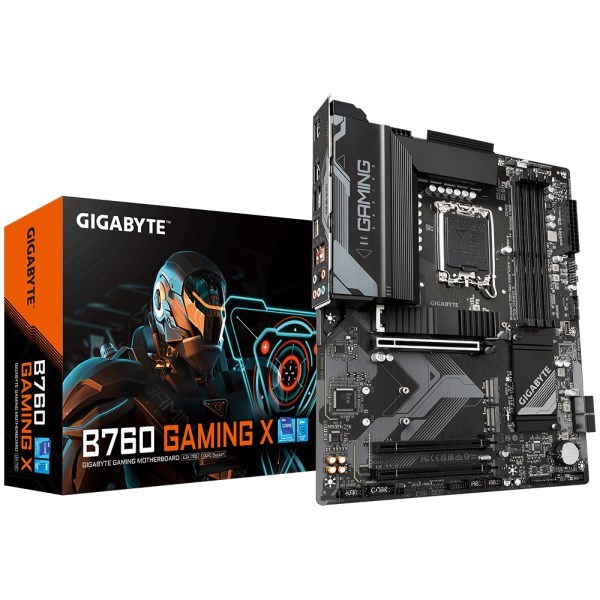

GIGABYTE MB Sc LGA1700 B760 GAMING X -

B760 GAMING X • Intel Socket LGA 1700:Support 13th and 12th Gen Series Processors • Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution • Dual Channel DDR5:4DIMMs XMP Memory Module Support • Next Generation Storage:3PCIe 4.0 x4 M.2 Connectors • Advanced Thermal Design & M.2... przeczytaj całość

B760 GAMING X

• Intel Socket LGA 1700:Support 13th and 12th Gen Series Processors

• Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution
• Dual Channel DDR5:4DIMMs XMP Memory Module Support
• Next Generation Storage:3PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks:2.5GbE LAN
• Extended Connectivity:Front USB-C 10Gb/s, DP, HDMI
• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Technical Specifications

CPU
Socket	LGA1700, Support for the 13th and 12th Generation Intel Core™, Pentium Gold and Celeron Processors
Chipset
Chipset	Intel B760 Express
Memory
Support for	DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Max. Number of DDR	4 x , supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Memory architecture	Dual channel
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Integrated Graphics Processor-Intel HD Graphics support:
DisplayPort	1 x , supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
HDMI	1 x , supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.3.
Audio
	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	Support for S/PDIF Out
LAN
	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
CPU	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset	2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage Interface
CPU	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset	2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
	4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset	1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
	1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
	3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
	1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs	8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
24-pin ATX main power connector	1 x
8-pin ATX 12V power connector	1 x
CPU fan header	1 x
CPU fan/water cooling pump header	1 x
system fan headers	3 x
system fan/water cooling pump header	1 x
addressable LED strip headers	2 x
RGB LED strip headers	2 x
M.2 Socket 3 connectors	3 x
SATA 6Gb/s connectors	4 x
front panel header	1 x
front panel audio header	1 x
S/PDIF Out header	1 x
USB Type-C header, with USB 3.2 Gen 2 support	1 x
USB 3.2 Gen 1 header	1 x
USB 2.0/1.1 headers	2 x
Trusted Platform Module header	1 x
serial port header	1 x
Q-Flash Plus button	1 x
reset jumper	1 x
Clear CMOS jumper	1 x
Back Panel Connectors
USB 3.2 Gen 2 Type-A port (red)	1 x
USB Type-C port, with USB 3.2 Gen 1 support	1 x
USB 3.2 Gen 1 port	1 x
USB 2.0/1.1 ports	5 x
DisplayPort	1 x
HDMI port	1 x
RJ-45 port	1 x
audio jacks	6 x
I/O Controller
	iTE I/O Controller Chip
H/W Monitoring
	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
	Support for GIGABYTE Control Center (GCC)
	Support for Q-Flash
	Support for Q-Flash Plus
Bundled Software
	Norton Internet Security (OEM version)
	LAN bandwidth management software
Operating System
Support for	Windows 11 64-bit
	Windows 10 64-bit
Form Factor
ATX Form Factor	30.5cm x 24.4cm
