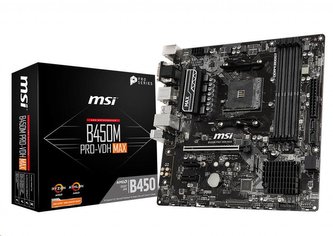

B450M PRO-VDH MAX

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Audio Boost, Turbo M.2

\n
• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
\n
• Supports DDR4 Memory, up to 3466+(OC) MHz
\n
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
\n
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
\n
• Audio Boost: Reward your ears with studio grade sound quality.
\n
• EZ Debug LED: Easiest way to troubleshoot
\n
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
\n
• PCI-E Steel Armor: Protecting VGA cards against bending and EMI.
\n

TECHNICAL SPECIFICATIONS

SOCKET\nAM4

CPU (MAX SUPPORT)\nRyzen 9

CHIPSET\nAMD B450 Chipset

DDR4 MEMORY\n1866/ 2133/ 2400/ 2667Mhz (by JEDEC)For AMD Ryzen Gen3 (R5/R7/R9)2667/2800/2933/3000/3066/3200/3466/3733/3866 by A-XMP OC modeFor AMD Other CPU2667/2800/2933/3000/3066/3200/3466 by A-XMP OC mode

MEMORY CHANNEL\nDual

DIMM SLOTS\n4

MAX MEMORY (GB)\n64

PCI-E X16\n1

PCI-E X1\n2

SATAIII\n4

M.2 SLOT\n1

TPM (HEADER)\n1

LAN\n1x Realtek 8111H Gigabit LAN controller

USB 3.2 PORTS (FRONT)\n2 (Gen1, Type A)

USB 3.2 PORTS (REAR)\n4 (Gen1, Type A)

USB 2.0 PORTS (FRONT)\n4

USB 2.0 PORTS (REAR)\n4

SERIAL PORTS (FRONT)\n1

PARALLEL PORT (FRONT)\n1

AUDIO PORTS (REAR)\nRealtek ALC892 Codec

DVI-D\n1

VGA\n1

HDMI\n1

DIRECTX\n12

FORM FACTOR\nm-ATX

OPERATING SYSTEM\nSupport for Windows 10 64-bitSupport for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
