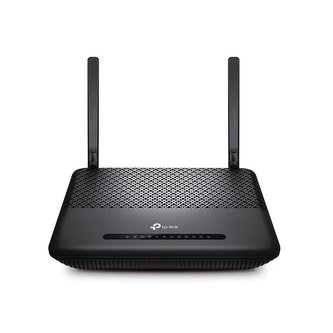

XC220-G3v

Bezdrôtový router AC1200 VoIP GPON

Super rýchla dvojpásmová sieť WiFi: Rýchlosť Wi-Fi až 1,2 Gbit/s, 300 Mbit/s v pásme 2,4 GHz, 867 Mbit/s v pásme 5 GHz

Plne gigabitový port: Až 10x rýchlejšie ako štandardné ethernetové rozhranie pre bleskurýchle káblové pripojenie

Podpora VoIP volania: Jednoducho uskutočňujte telefónne hovory cez internet

Jednoduchá vzdialená správa: Podporuje rozhranie ONT Management and Control Interface (OMCI), jednoduchú konfiguráciu a vzdialenú správu z jednotky OLT

Neprerušované pripojenie: Podporuje VLAN, 802.1q, plynulé sieťové pripojenie pre IPTV a ďalšie služby



HARDWARE FEATURES

Interface 4 10/100/1000Mbps RJ45 LAN Ports, 1 SC/APC GPON Port, 1 RJ11 FXS Port

Button Power On/Off Button, WPS/Wi-Fi Button, RESET Button

External Power Supply 12V/1.5A

Antenna 2 External Dual Band Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency 2.4GHz and 5GHz (not Supports DFS)

Signal Rate 867Mbps at 5GHz, 300Mbps at 2.4GHz

Transmit Power 2.4GHz: 26dBm(EIRP), 5GHz: 27dBm(EIRP)

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

Wireless Schedule Support 2.4GHz and 5GHz Wireless Schedule

Mesh Technology WPA EasyMesh, TP-Link OneMesh

SOFTWARE FEATURES

Quality of Service Hardware QoS

Security NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death”

Management Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, Web Based Firmware Upgrade, Diagnostic Tools, OMCI

DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS DynDns, NO-IP

VPN Pass-Through PPTP, L2TP, IPSec Pass-through

Protocols Supports IPv4 and IPv6

VOIP Features Call hold, Call forward, Warm call, Do not disturb, Call restriction, Speed dial, etc. Caller ID, 3-party conference, SIP account – up to 8 accounts

Advanced Functions Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3

OTHERS

Package Contents AC1200 Wireless VoIP GPON Router

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~70? (-40? ~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
