High-definition performance for personal computing.

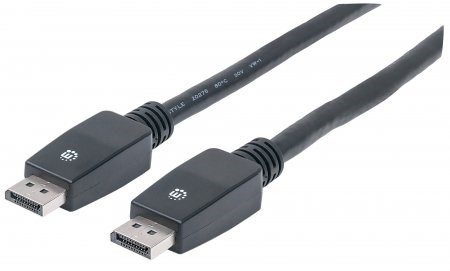

Manhattan DisplayPort Cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 10.8 Gbps bandwidth, Deep Color and 24-bit, 8-channel uncompressed audio capability. It's ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

Features:

DisplayPort 20-pin male to DisplayPort 20-pin male with latching connections and strain relief boots
Delivers high-bandwidth, bi-directional, 10.8 Gbps, digital audio/visual signals from source to display - up to 4Kx2K@60Hz
4K, UHD resolution supports video resolution four times 1080p; up to 1080p resolution in 3D and Deep Color
Dolby and DTS-HD 2/5.1/7.1/8 uncompressed surround sound audio pass-through
Fully shielded to reduce EMI and other interference sources
Supports the HDCP and DPCP content protection standards
Lifetime Warranty

Specifications:

Standards and Certifications
UL 20276
DisplayPort 1.1
ISO 9002

General
Bandwidth: 10.8 Gbps at 600 MHz
Meets or exceeds existing DisplayPort standards
Length: 10 m

Connectors
DisplayPort 20-pin male with latches (2)
Gold plated
Gold-plated contacts
ABS boots, built-in PVC strain relief

Cable
26 AWG
Shielding: aluminum and Mylar braid
Withstanding voltage: 300 VDC
Insulation resistance: 5 M?
Contact resistance: 10 Ohms
Current rating: 0.5 A DC
Conductive resistance: 5 Ohms
Thermal plastic casing

Operating Environment
Operation Temperature: 0 - 50°C (32 - 122°F)
Storage Temperature: -25 - 85°C (-13 - 185°F)
Humidity (noncondensing): 0 - 96%

Package Contents
DisplayPort Monitor Cable
