1. Support for 8th Generation Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package


2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

1. Intel H310 Express Chipset

1. 1 x DDR4 SO-DIMM sockets supporting up to 16 GB of system memory


2. Support for DDR4 2400/2133 MHz memory modules


3. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)


4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz


2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

1. 1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI)

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A)


2. 2 x SATA 6Gb/s connectors

1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)


2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

1. Realtek ALC887 codec


2. High Definition Audio


3. 2/4/5.1/7.1-channel

1. Realtek GbE LAN chips (10/100/1000 Mbit)

1. Infineon chip, supporting TPM 2.0

1. 1 x DC-In power connector


2. 2 x USB 2.0/1.1 ports


3. 2 x USB 3.0/2.0 ports


4. 1 x RJ-45 port


5. 1 x HDMI port


6. 1 x D-Sub port


7. 2 x audio jacks

1. 1 x 4-pin ATX 12V power connector


2. 1 x CPU fan header


3. 1 x system fan header


4. 2 x SATA 6Gb/s connectors


5. 1 x SATA power connector


6. 1 x front panel header


7. 1 x front panel audio header


8. 1 x battery power cable connector


9. 1 x USB 3.0/2.0 header


10. 1 x USB 2.0/1.1 header


11. 2 x serial port headers


12. 1 x LVDS header


13. 1 x LVDS drive voltage jumper (LCD_VCC)


14. 1 x flat panel display header (FPD)


15. 1 x flat panel display power jumper (FPD_PWR)


16. 1 x speaker header (SPKR)


17. 1 x buzzer header (SPEAKER)


18. 1 x Clear CMOS jumper


19. 1 x chassis intrusion header

1. iTE I/O Controller Chip

1. Voltage detection


2. Temperature detection


3. Fan speed detection


4. Overheating warning


5. Fan fail warning


6. Fan speed control
   Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 128 Mbit flash


2. Use of licensed AMI UEFI BIOS


3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for @BIOS


2. Support for Q-Flash

1. Norton Internet Security (OEM version)

1. Support for Windows 10 64-bit

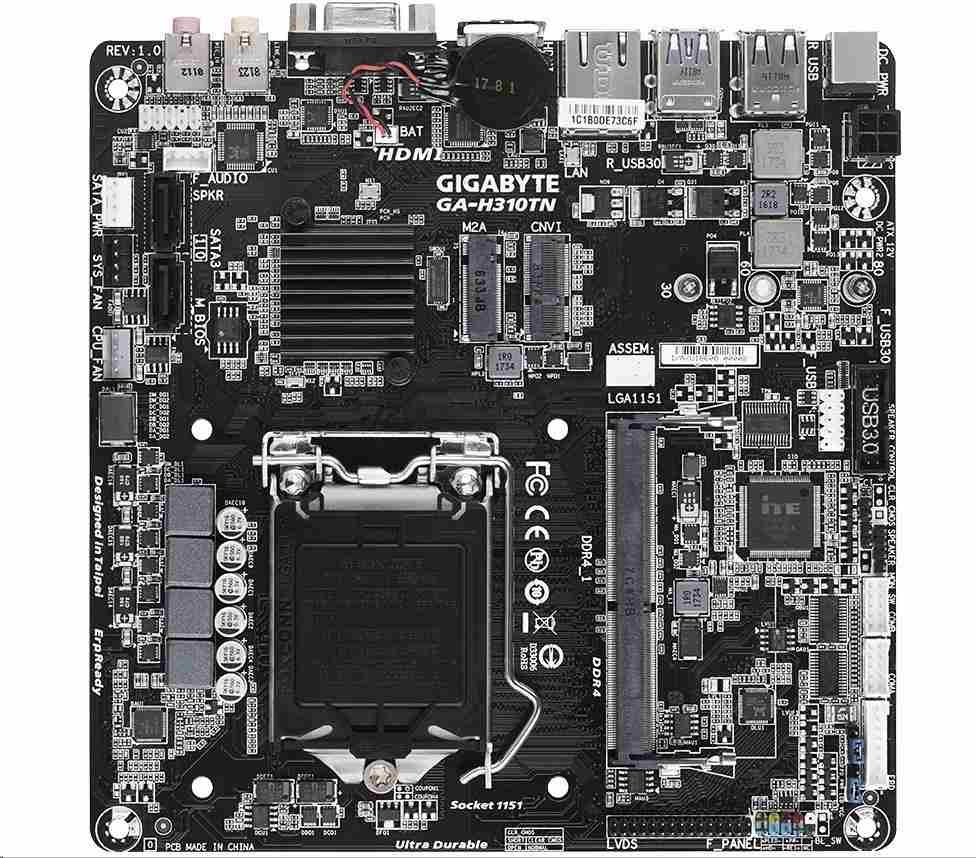

1. Thin Mini-ITX Form Factor; 17.0cm x 17.0cm
