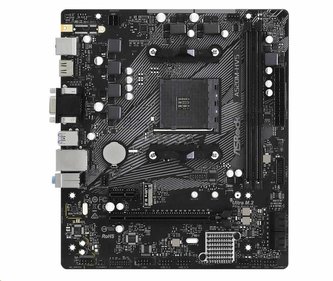

ASRock MB Sc AM4 A520M-HVS, AMD A520M, 2xDDR4, HDMI -

B550 Pro4Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors8 Power Phase Design, Digi PowerSupports DDR4 4733+ (OC)1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: HDMI, D-SubAMD CrossFireX™7.1 CH HD Audio (Realtek ALC1200 Audio Codec),... przeczytaj całość

B550 Pro4

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors

8 Power Phase Design, Digi Power

Supports DDR4 4733+ (OC)

1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi

Graphics Output Options: HDMI, D-Sub

AMD CrossFireX™

7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio

6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)

2 USB 3.2 Gen2 (Rear Type A+C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)

Gigabit LAN

TECHNICAL SPECIFICATIONS

Unique Feature	ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors) - 6 Power Phase design Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Chipset	- AMD A520
Memory	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - Max. capacity of system memory: 64GB - Supports Extreme Memory Profile (XMP) memory modules - 15µ Gold Contact in DIMM Slots
Graphics	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 Port - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft PlayReady *Actual support may vary by CPU The Max shared memory 16GB requires 32GB system memory installed.
Slots	- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) - 1 x PCI Express 3.0 x1 Slot Supports NVMe SSD as boot disks
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Connector	- 1 x SPI TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
Audio	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection
Rear panel I/O	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket
Hardware Monitor	- Temperature Sensing: CPU, Chassis Fans - Fan Tachometer: CPU, Chassis Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans - Fan Multi-Speed Control: CPU, Chassis Fans - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Operating System	- Microsoft Windows 10 64-bit
Form Factor	- Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
