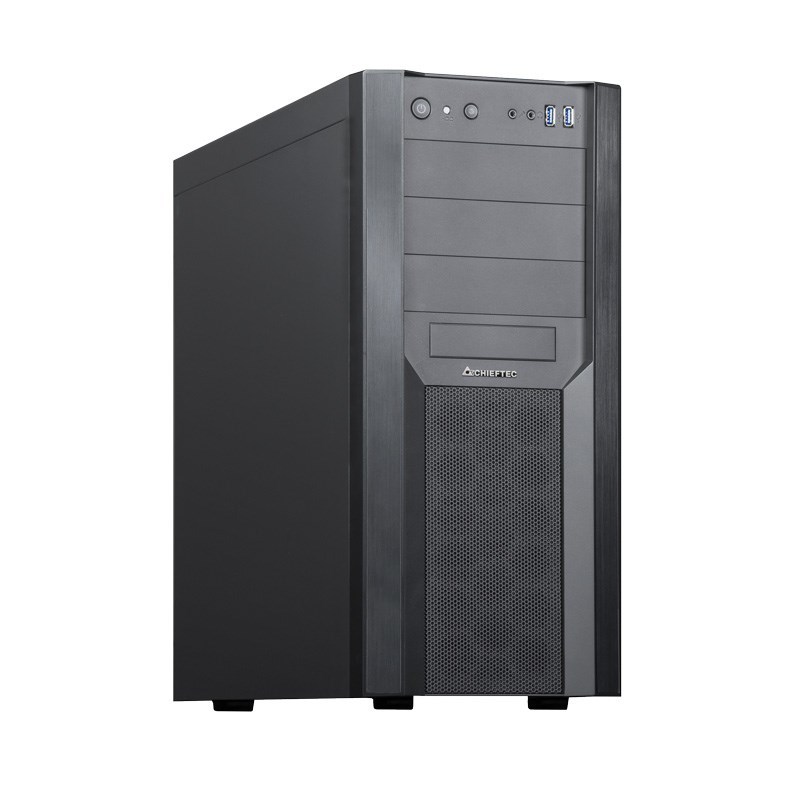

CW-01B-OP
- Tool-less installation of external and internal drives
- Diverse cooling options and drive bays for modern workstations
- Elegant design combining brushed aluminum and mesh features
The CW-01B-OP is Chieftec’s interpretation of a high-performance workstation case, providing high functional flexibility with external and internal drives and diverse cooling options. Preinstalled dust filters guarantee you a dust-free system. Featuring a modern, yet timeless, design combining brushed aluminum and filtered mesh, the Chieftec CW-01B-OP provides great airflow for an optimal workstation performance.
SPECIFICATIONS:
Modell |
CW-01B-OP |
EAN code |
0753263076977 |
Color |
Black |
Material |
0.7mm SPCC |
Motherboard support |
Mini ITX, mATX, ATX |
Dimension (DxWxH) |
490mm x 210mm x 471mm (stand +21mm) |
Weight (without/with package) |
6.8 kg / 7.8 kg |
Drive bay external |
3x 5.25” and 1x 3.5” |
Drive bay internal |
7x 3.5” or 7x 2.5” |
Power supply |
ATX PSU (optional) |
Front I/O |
2x USB3.0 (USB3.1 Gen 1), Audio-out (AZALIA / HD-Audio), Mic-In |
Scope of delivery |
Screw set, Tool-less installation kit, front dust filter, 2x magnetic dust filters (top & bottom) |
Expansion slots |
7 |
Cooling Compatibility |
Top: 2x 120mm/140mm fans or up to 280mm radiator (use of 280mm radiator blocks first ODD drive) Front: 2x 120mm fans Back: 1x 120mm fan Bottom: 1x 120mm or 140mm fan (depending on PSU length) |
CPU cooler height (max.) |
165mm |
VGA card length (max.) |
270 mm (410mm if middle HDD cage removed) |
Warranty |
24 Months |
