B450I GAMING PLUS ACSupports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics / 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4Supports DDR4-3466(OC) MemoryLightning Fast Game experience: TURBO M.2, StoreMIAudio...
przeczytaj całość

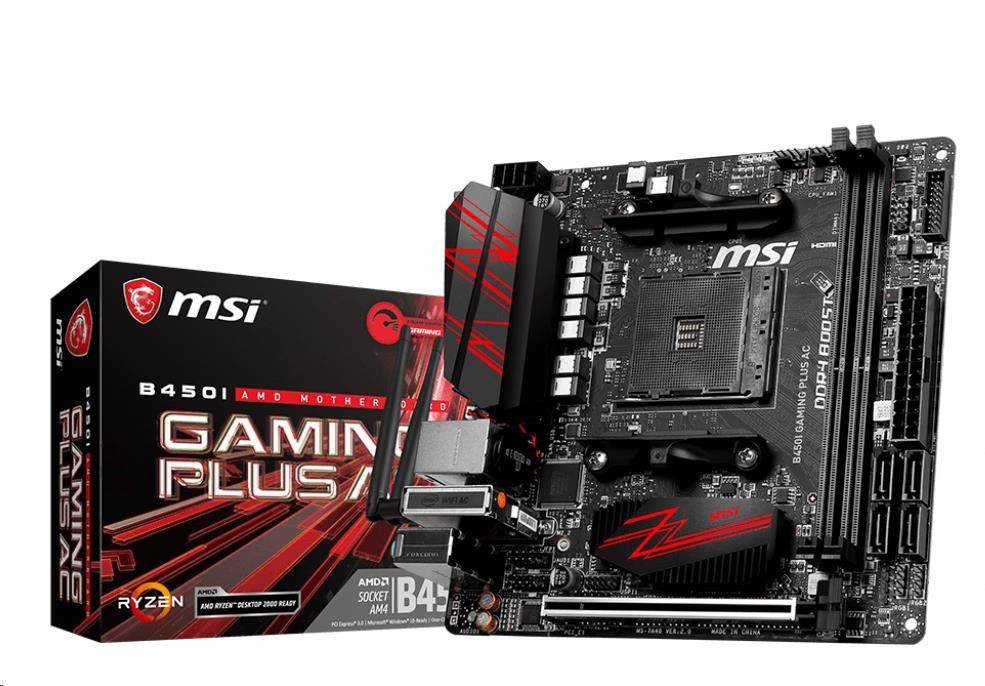

B450I GAMING PLUS AC
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics / 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4-3466(OC) Memory
- Lightning Fast Game experience: TURBO M.2, StoreMI
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
- Intel Wireless support: delivers AC speeds up to 433Mbps with lower CPU loading and better long-term usage.
- VR Ready: Automatically optimizes your system for VR usage, pushing for maximum performance.
- In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
- EZ Debug LED: Easiest way to troubleshoot
- GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players
More info www
TECHNICAL SPECIFICATIONS
SOCKET |
AM4 |
DDR4 MEMORY |
1866/ 2133/ 2400/ 2667Mhz (by JEDEC) 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) |
CPU (MAX SUPPORT) |
Ryzen 9 |
CHIPSET |
AMD B450 Chipset |
MEMORY CHANNEL |
Dual |
DIMM SLOTS |
2 |
MAX MEMORY (GB) |
32 |
PCI-EX16 |
1 |
SATAIII |
4 |
M.2 SLOT |
1 |
RAID |
0/1/10 |
LAN |
1 (Realtek 8111H) |
USB 3.1 PORTS (FRONT) |
2 (Gen1, Type A) |
USB 3.1 PORTS (REAR) |
4 (Gen1, Type A) |
USB 2.0 PORTS (FRONT) |
2 |
USB 2.0 PORTS (REAR) |
2 |
AUDIO PORTS (REAR) |
3 (Realtek ALC887 Codec) |
DISPLAY PORT |
1 |
HDMI |
1 |
DIRECTX |
12 |
FORM FACTOR |
Mini-ITX |
OPERATING SYSTEM |
Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
