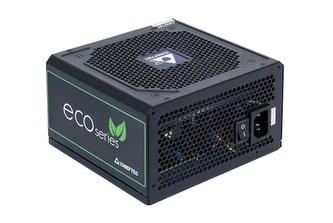

The name ECO stands for maximum efficiency, ecological values and a new era of Power Supplies so that while in R & D, all relevant factors were considered accordingly, resulting in an absolute value-added solution for both home and office solutions. Compatible with all current standards and...
przeczytaj całość
The name ECO stands for maximum efficiency, ecological values and a new era of Power Supplies so that while in R & D, all relevant factors were considered accordingly, resulting in an absolute value-added solution for both home and office solutions. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures. The efficiency of the four new power supplies at loads of 20%, 50% and 100% lies by a stable and solid 85%, thereby defining the Power Supply to fulfill all ENERGY STAR 5,0 requirements as stipulated by the EU.
\n\n
Owing to the future-oriented and effective layout of the PCBs, Green IT projects are realized cost efficiently with ease. The performance scale of the four new ECO power supplies range as follows: 400W (GPE-400S), 500W (GPE-500S), 600W (GPE-600S) and 700W (GPE-700S). All power supplies comply with the latest ATX 12V 2.3 specifications and meet the Haswell requirements. The cable lengths are very generous and a vast amount of connectors are given. The latest “state-of-the-art” +12V single rail technology is implemented which ensures that power hungry components such as multi-GPUs are serviced with a stable power flow. Even under full load, the large 120mm low noise fan rotates at max. 1500RPM and is barely audible.
\n\n
The ECO series come in an eye-catching retail box including the European power cable.
\nConnectors:
\n| \n \n | \n\n 24PIN \n | \n\n SATA \n | \n\n MOLEX \n | \n\n 4PIN 12V \n | \n\n 8PIN EPS (4+4) \n | \n\n 6+2 PCIe \n | \n
| \n GPE-400S \n | \n\n 1 \n | \n\n 4 \n | \n\n 2 \n | \n\n 1 \n | \n\n x \n | \n\n x \n | \n
| \n GPE-500S \n | \n\n 1 \n | \n\n 4 \n | \n\n 2 \n | \n\n 1 \n | \n\n x \n | \n\n 1 \n | \n
| \n GPE-600S \n | \n\n 1 \n | \n\n 6 \n | \n\n 2 \n | \n\n x \n | \n\n 1 \n | \n\n 2 \n | \n
| \n GPE-700S \n | \n\n 1 \n | \n\n 6 \n | \n\n 2 \n | \n\n x \n | \n\n 1 \n | \n\n 2 \n | \n
\n
\n
Technical specifications:
\n| \n \n | \n\n GPE-400S \n | \n\n GPE-500S \n | \n\n GPE-600S \n | \n\n GPE-700S \n | \n
| \n AC Input: \n | \n\n 230V 3A \n | \n\n 230V 5A \n | \n\n 230V 6,3A \n | \n\n 230V 6,3A \n | \n
| \n Frequency: \n | \n\n 50 Hz \n | \n\n 50 Hz \n | \n\n 50 Hz \n | \n\n 50 Hz \n | \n
| \n +5V: \n | \n\n 15A \n | \n\n 20A \n | \n\n 22A \n | \n\n 22A \n | \n
| \n +3,3V: \n | \n\n 21A \n | \n\n 21A \n | \n\n 22A \n | \n\n 22A \n | \n
| \n +5V & +3,3V combined: \n | \n\n 103W \n | \n\n 103W \n | \n\n 120W \n | \n\n 130W \n | \n
| \n +12V 1: \n | \n\n 30A \n | \n\n 37,5A \n | \n\n 45A \n | \n\n 52,5A \n | \n
| \n P.F.: \n | \n\n >0,9 \n | \n\n >0,9 \n | \n\n >0,9 \n | \n\n >0,9 \n | \n
| \n -12V: \n | \n\n 0,3A \n | \n\n 0,3A \n | \n\n 0,3A \n | \n\n 0,3A \n | \n
| \n +5VSB: \n | \n\n 2,5A \n | \n\n 2,5A \n | \n\n 2,5A \n | \n\n 2,5A \n | \n
| \n Maximum Load: \n | \n\n 400W \n | \n\n 500W \n | \n\n 600W \n | \n\n 700W \n | \n
- Wydawca: Chieftec
- Kod:
- Język: Czeski
