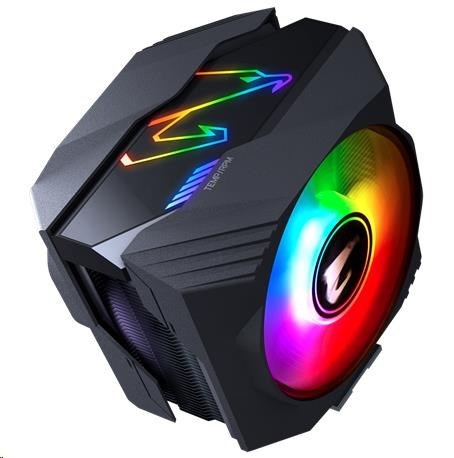

ATC800
- 6 x O6mm copper direct pipe, efficiently dissipates 200W CPU heat.
- 2 x 12cm 2 ball bearing RGB fan.
- Supports RGB FUSION 2.0 synchronization with other AORUS devices.
- CPU Temp and RPM indicator, easy to monitor CPU status.
- Memory compatibility design.
- Warranty: Limited 3 years.
TECHNICAL SPECIFICATIONS
Model |
ATC800 |
Rated Voltage |
12 V |
Rated Current |
0.12 A |
Fan Speed |
600 - 2000 RPM±10% |
Bearing Type |
2 Ball Bearing |
Weight |
1010g |
CPU Socket |
Intel Socket 2066 , 2011, 1366, 1156, 1155, 1151, 1150 AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2 |
TDP |
>200W |
Dimensions (LxWxH) |
L139 x W107 x H163 mm |
Heat Sink Material |
6 x O6mm Copper Direct Heat Pipes, Aluminum Fins |
Fan Dimensions |
120 x 25 mm x 2pcs |
Fan Air Flow |
14.05 - 51.7 CFM |
Fan Air Pressure |
0.18 - 2.0 mm H2O |
Fan Life Expectancy |
70,000 Hours |
Noise Level |
18 ~ 31 dBA |
Connector |
Fan 4-Pin , UBS 2.0 |
Power Consumption |
1.44 W |
Fan Control Mode |
PWM / DC |
Note |
To fully support CPU TEMP /RPM Indicator functions recommend GIGABYTE motherboard. |
