Standards Compliance

• IEEE 802.3i 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3z 1000BASE-T Gigabit

• Compatible with all major network software

• Eight (8) 10/100/1000 Mbps Ethernet RJ-45 ports

• 12V, 1.0A power adapter, localized to country of sale

• Dimensions (h x w x d): 27 x 158 x 105 mm (1.1 x 6.2 x 4.1 in)
• Weight: 522 g (1.15 lbs)

• CE mark (commercial), EN 55022 (CISPR 22) Class B, FCC Part 15 Class B, VCCI Class B, C-Tick

• CE/LVD EN 60950, CB

• Operating temperature: 32° to 122° F (0° to 50° C)
• Operating humidity: 90% maximum
• relative humidity, non-condensing

• Ethernet Category 5 cable
• Network card for each PC
• Microsoft Windows 7, Vista, or XP for running Confi guration Utility

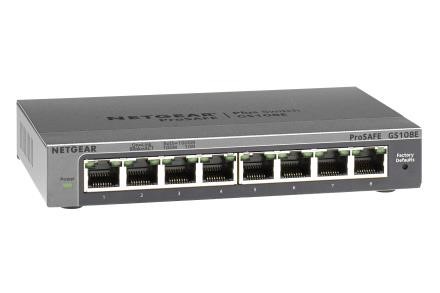

• ProSafe Plus Switch, 8-port Gigabit

• Wall-mount kit
• 12V, 1.0A power adapter
• Quick install guide
• Resource CD with configuration utility software

• NETGEAR Lifetime Warranty‡ (see information enclosed)

Features

• Gigabit speed with QoS, VLAN and network monitoring
• Simple network set-up on top of Plug-and-Play connectivity
• Detects loops and prevents broadcast storm
• NETGEAR Green, power saving features
• VLAN support for traffic separation
• Quality of Service (QoS) prioritizes traffic
• Auto "Denial-of-Service" (DoS) prevention
• Network monitoring and bandwidth control
• Troubleshoot connection issues via cable test
• Loop detection
