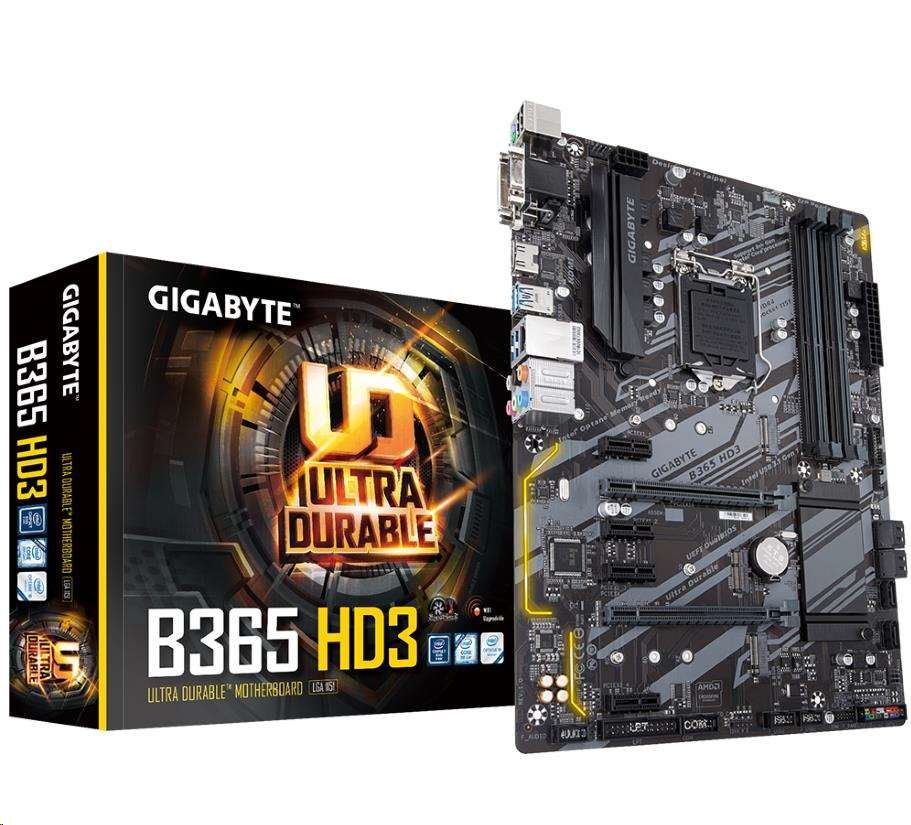

GIGABYTE MB Sc LGA1151 B365 HD3, Intel B365, 4xDDR4, VGA -

B365 HD3 (rev. 1.0)Intel B365 Ultra Durable motherboard with Dual M.2, GIGABYTE 8118 Gaming LAN with 25KV protection, 7 colors RGB LED strips support, WIFI upgradable slot, Anti-Sulfur Resistor Design, Smart Fan 5, CEC 2019 readySupports 9th and 8th Gen Intel Core™ ProcessorsDual Channel Non-ECC... przeczytaj całość

B365 HD3 (rev. 1.0)

Intel B365 Ultra Durable motherboard with Dual M.2, GIGABYTE 8118 Gaming LAN with 25KV protection, 7 colors RGB LED strips support, WIFI upgradable slot, Anti-Sulfur Resistor Design, Smart Fan 5, CEC 2019 ready

Supports 9th and 8th Gen Intel Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4

New Hybrid Digital PWM Design

M.2 Socket 1 slot for WIFI upgradable

High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 & SATA interface

Supports RGB LED strips in 7 colors

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

CEC 2019 Ready, Save the Power as Easy as One Click

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Anti-Sulfur Resistors Design

Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection

Intel Optane™ Memory Ready

Lightning-Fast Intel Thunderbolt™ 3 AIC Support

TECHNICAL SPECIFICATIONS

CPU	Support for 9th and 8th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/ Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel B365 Express Chipset
Memory	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory module * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core™ i9/i7/i5 processor. (Please refer "Memory Support List" for more information.)
Onboard Graphic	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Actual support may vary by CPU
Audio	Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Realtek GbE LAN chip (10/100/1000 Mbit)
Expantion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 4 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface	Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane™ Memory
USB	Chipset: 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x parallel port header 1 x serial port header 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install
Bundle Software	Norton Internet Security (OEM version) Realtek 8118 Gaming LAN bandwidth Control Utility
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 22.5cm
Note	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
