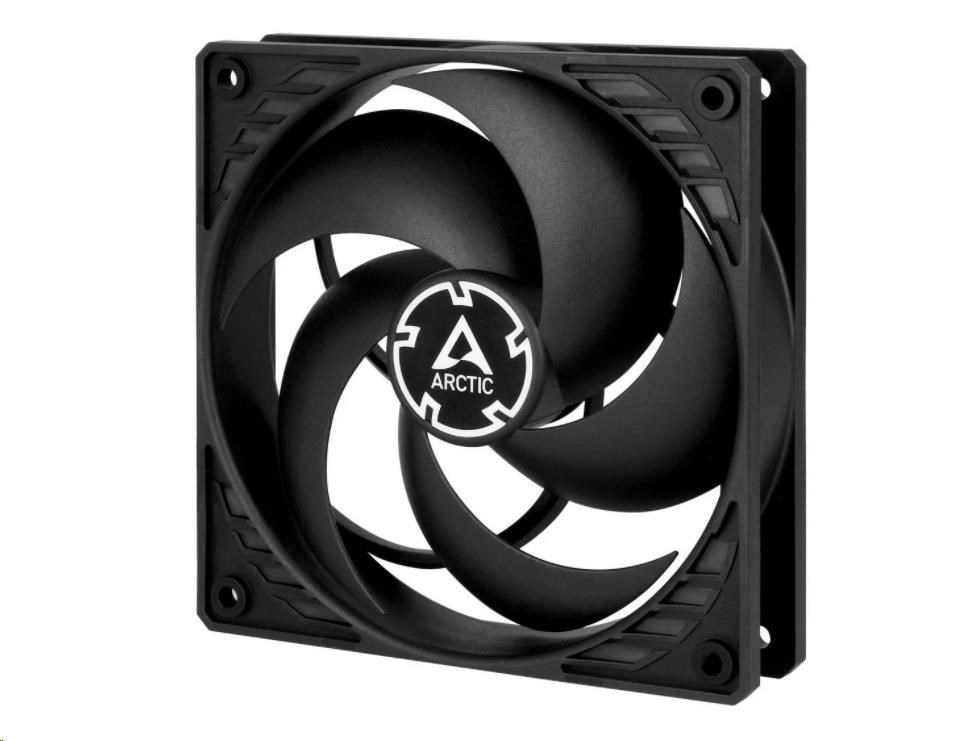

P12 PWM
During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators.
TECHNICAL SPECIFICATIONS
Performace |
Fan Speed |
200 - 1800 RPM |
Airflow |
56.3 CFM/ 95.7 m3/h |
Static Pressure |
2,20 (mm/H2O) |
Noise Level |
0.3 Sone |
Fan |
Fan Frame |
Standard |
Controll Type |
PWM |
Connector |
4-Pin Connector |
Fan Bearing |
Fluid Dynamic Bearing |
Electric Characteristics |
Typical Voltage |
12 V DC |
Starting Voltage |
3.9 V |
Current |
0.08 A |
Cable Lenght |
400 mm |
Size & Weight |
Dimensions (L x W x H) |
120 x 120 x 25 mm |
Weight |
139 g |
Packaging |
Dimensions (L x W x H) |
27 x 123 x 123 mm |
Weight |
0.17 kg |
