Network Protocol and Standards Compatibility

• IEEE 802.3 10BASE-T Ethernet


• IEEE 802.3u 100BASE-TX Fast Ethernet


• IEEE 802.3ab 1000BASE-T Gigabit Ethernet


• IEEE 802.3x full-duplex flow control

Interfaces

• 16 RJ-45 connectors for 10BASE-T, 100BASE-TX and 1000BASE-T (Auto Uplink on all ports)


• 2 SFP slots for fiber Gigabit Ethernet modules

Administrative Switch Management

• IEEE 802.1D Spanning Tree Protocol


• RFC 1157 SNMP v1, v2c


• RFC 1213 MIB II


• RFC 1643 Ethernet Interface MIB


• RFC1493 Bridge MIB


• Private Enterprise MIB


• Jumbo Frame Support (up to 9216 bytes)


• IEEE 802.1Q Tag VLAN (up to 64 Static VLAN groups)


• Port-based VLAN (up to 24 groups)


• IEEE 802.1p (Class of Service)


• Diffserv Port-based QoS (options High/Normal)


• Port Trunking - Manual as per IEEE802.3ad Link Aggregation


• DHCP client function


• Port mirroring (many to one)


• Port setting


• Web-based configuration, anywhere on the network


• Smartwizard Discovery Utility program auto discovers devices (up to 254 agents/switches); set system configuration to each agent


• Configuration Backup/Restore (easy to configure more than one switch)


• Password access control and Restricted IP Access List


• Firmware upgradeable

Active Flow Control

• Full-duplex IEEE 802.3x pause frame flow control


• Half-duplex back-pressure control

Performance Specifications

• Forwarding modes: Store-and-forward


• Bandwidth: 32 Gbps


• Network latency: Less than 20 µs for 64- byte frames in store-and-forward mode for100 Mbps to 100 Mbps transmission


• Buffer memory: 256 KB embedded memory per unit


• Priority Queues: 4


• Priority Queuing: Weighted Round Robin (WRR)


• Address database size: 8,000 media access control (MAC) addresses per system


• Addressing: 48-bit MAC address


• Mean Time Between Failure (MTBF): 65,789 (~7.5 years)


• Acoustic Noise: 42.5 dBA

LEDs

• Unit: power


• Per port: link, activity, speed, duplex

Power Supply

• Power Consumption: 29 W maximum


• 100-240VAC/50-60 Hz universal input

Physical Specifications

• Dimensions (h x w x d): 1.7 x 17.3 x 8.1 in (43 x 440 x 205 mm)


• Weight: 5.9 lb (2.7 kg)

Environmental Specifications

• Operating temperature: 32° to 104°F (0° to 40° C)


• Storage temperature: -4° to 158°F (-20° to 70° C)


• Operating humidity: 90% maximum relative humidity, non-condensing


• Storage humidity: 95% maximum relative humidity, non-condensing


• Operating altitude: 10,000 ft (3,000 m) maximum


• Storage altitude: 10,000 ft (3,000 m) maximum

Electromagnetic Compliance

• CE mark, commercial


• FCC Part 15 Class A


• VCCI Class A


• EN 55022 (CISPR 22)


• EN 55024 (CISPR 24)


• C-Tick

Safety Agency Approvals

• UL listed (UL 1950)/cUL


• IEC950/EN60950


• CE mark, commercial


• CUL 60950 (Listed)/EN60950 (Low Voltage Directive)

Package Contents

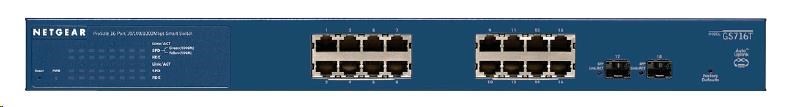

• 16-port Gigabit Smart Switch (GS716T)


• Rubber footpads


• Power cord


• Rack-mount kit


• Smart Switch resource CD


• Smart Switch installation guide


• Warranty/support information card
